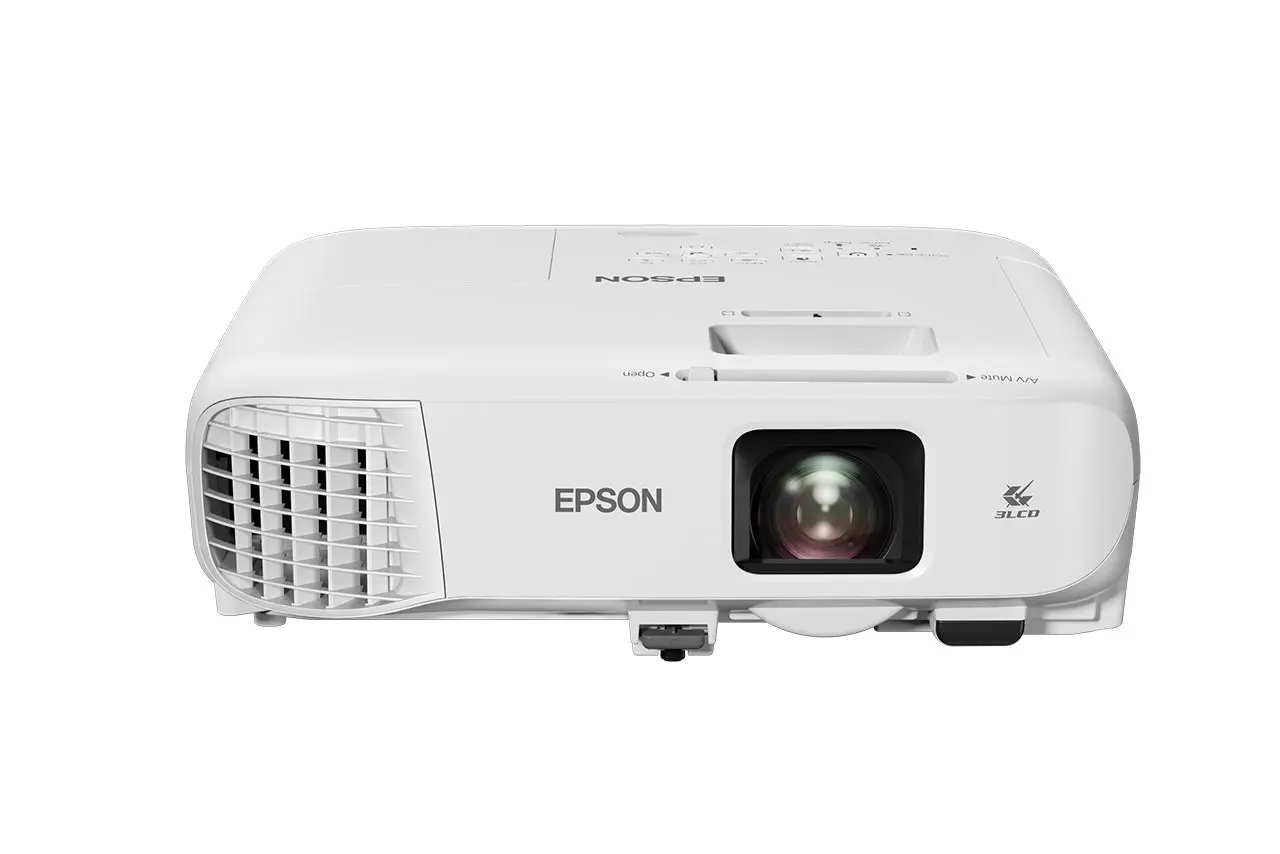

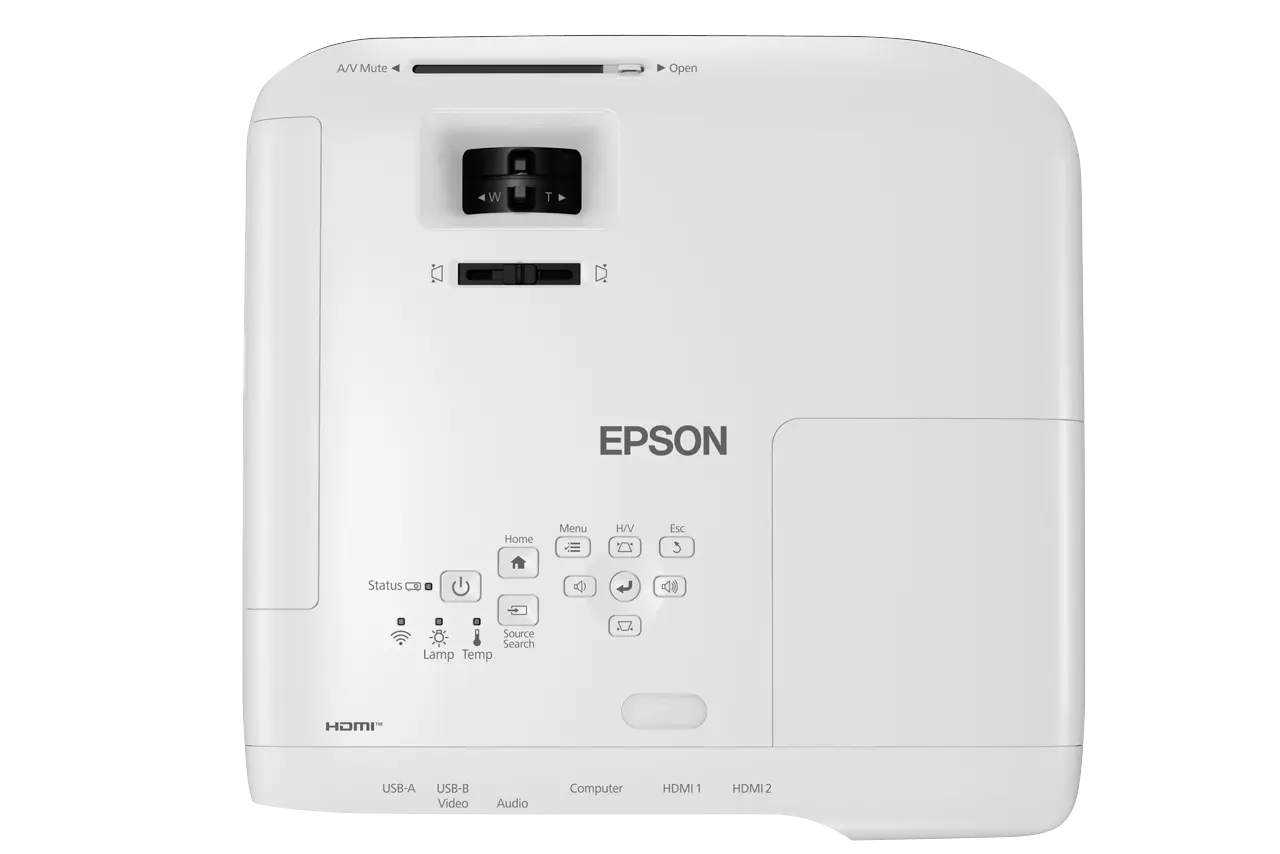

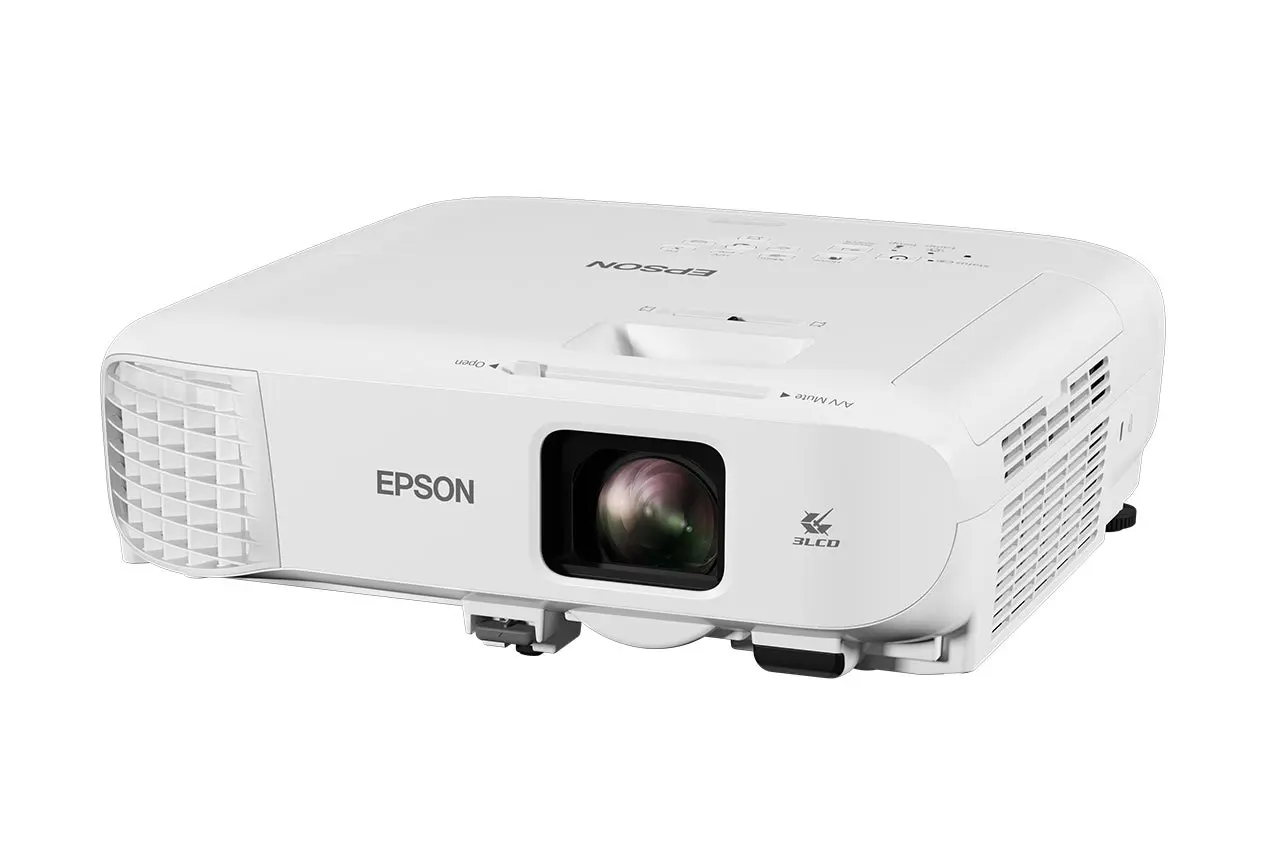

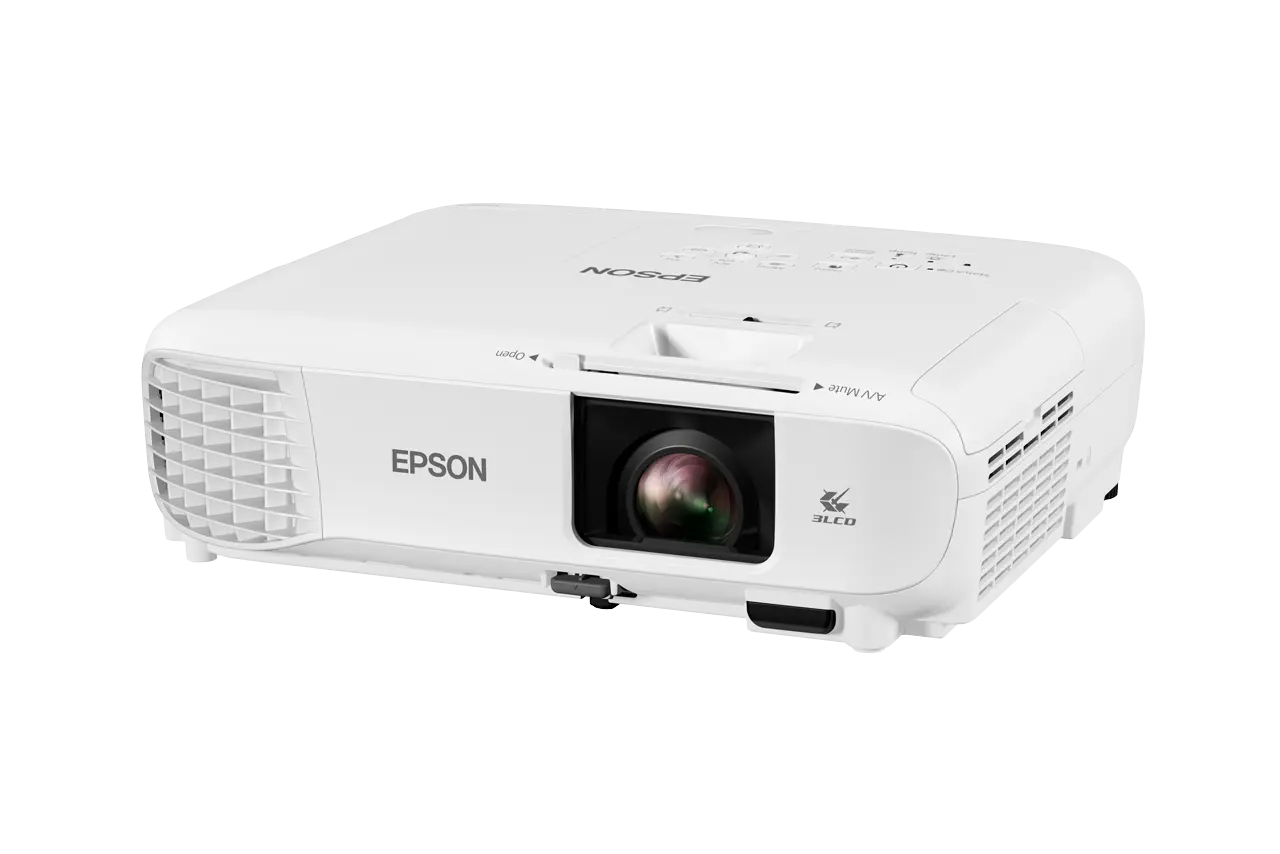

Epson EB-X49 XGA 3CLD 3600 Lumens projector

The Epson EB-X49 3600 Lumens projector is a bright classroom/business projector designed for presentations and general use.

General Overview

-Model: Epson EB-X49

-Type: 3LCD projector

-Brightness: 3,600 lumens (white & color)

-Native Resolution: XGA (1024 × 768)

-Aspect Ratio: 4:3 (supports widescreen content letterboxed)

-Contrast Ratio: ~16,000:1

-Projection Size: 30″ – 300″ diagonal

-Throw Ratio: Approx. 1.48 – 1.77:1

-Technology: 3LCD with RGB liquid crystal shutter

Display and Image

-Display Technology: 3LCD (no color wheel, balanced brightness)

-Native Resolution: XGA (1024 × 768)

-Supported: up to WUXGA (1920 × 1200) input (scaled)

-Aspect Ratio: 4:3 native; widescreen supported

-Color Reproduction: Up to ~1.07 billion colors

-Projection Distance: ~0.88 – 10.44 m for 30″ – 300″ screen

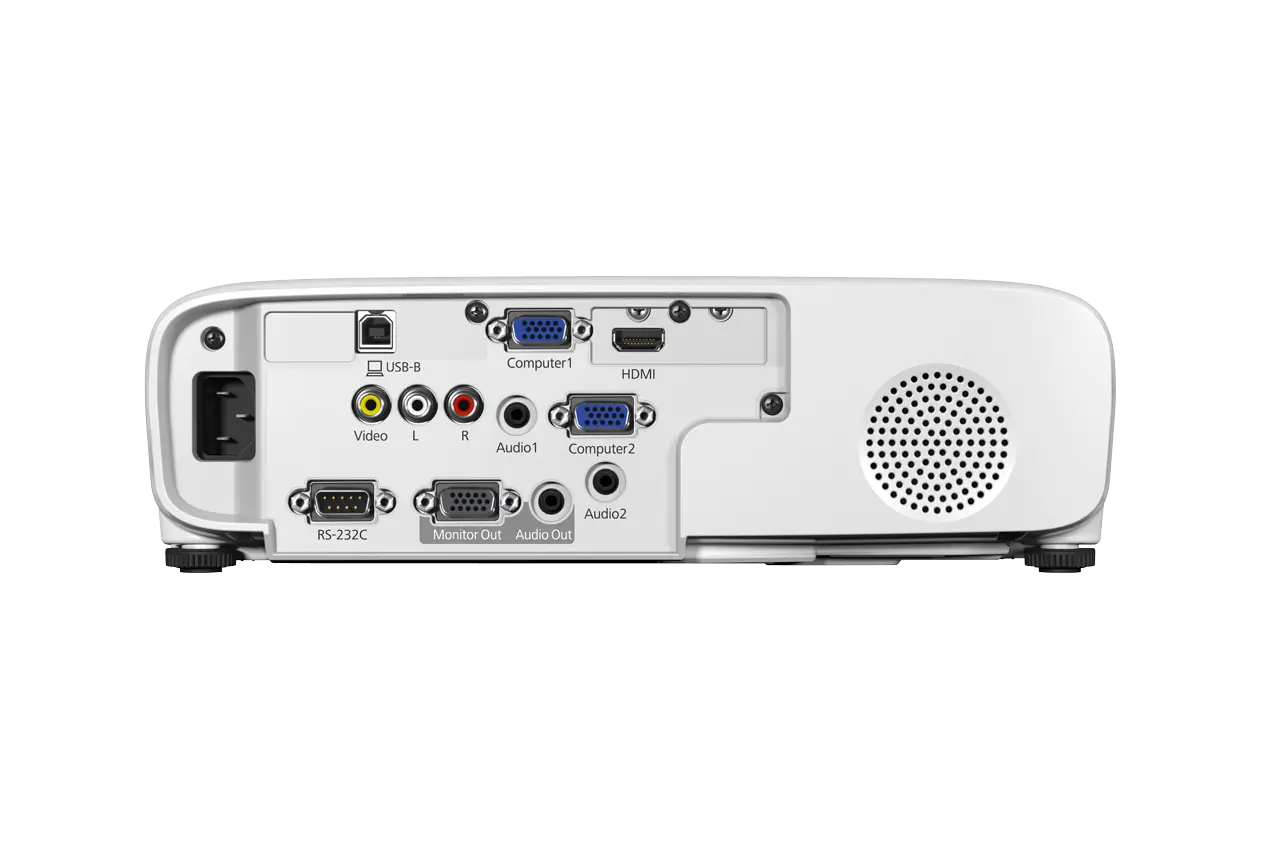

Connectivity

-HDMI: 1 × HDMI input (HDCP supported)

-VGA / D-Sub: 2 × VGA inputs, 1 × VGA output

-USB-A: 1 × (USB memory, wireless module, or DC out)

-USB-B: 1 × (USB display / control / mouse)

-Composite Video: 1 × RCA (Yellow)

-Audio In: 2 × 3.5 mm, 1 × RCA Left/Right

-Audio Out: 1 × 3.5 mm

-RS-232c Control: 1 × D-Sub 9-pin

-LAN (RJ-45): 1 × Ethernet (network control/projection)

-Wireless projection: Available with optional wireless adapter

Optics and Adjustment

-Zoom: 1.2× optical zoom

-Focus: Manual

-Keystone Correction:

Vertical: ±30° (automatic or manual)

Horizontal: ±30° (manual)

-Lens Throw Ratio: ~1.48 – 1.77:1

Physical

-Dimensions (W × D × H): ~302 × 234 × 77 mm (varies slightly by retailer)

-Weight: ~2.7 kg

-Color: White

Performance and Other Specs
-Noise Level: Normal: ~37 dB

Eco: ~28 dB

-Power Supply: 100 – 240 V AC, 50/60 Hz

-Power Consumption: Normal: ~327 W

Eco: ~225 W

Standby: < 0.3 W

-Mounting Options: Front, Rear, Ceiling

Summary Specification

-Brightness; 3,600 Lumens (Color & White)

-Native Resolution; XGA (1024 × 768)

-Technology;3LCD

-Lamp Life;6,000h (Normal), 12,000h (Eco mode)

-Connectivity;(HDMI,VGA,USB-A/B,Audio, LAN,R232C)

-Keystone;±30° Vertical/Horizontal

-Speaker; Built in ~5 W

-Weight;2.7 kg

-Contrast Ratio-16,000:1
